Local Weather

All Sky Camera
I am currently building an all-sky camera to capture images of the sky as visible from my backyard. An ZWO ASI224MC camera is connected via a USB3 cable to a Raspberry Pi3 server running software that captures images every minute and store them on a microSD card. Once a day, a cron script in the software posts these images to this website so I (and you) can view them, both real time and previous conditions for the past several days.

The all-sky camera software was developed by Thomas Aquinas and made available on GitHub. It saves images of the sky every minute and generates a time lapse video from those images. It also generates a keogram. Click the button below to visit the page devoted to the all-sky camera.
Stacks Image 70
Current Weather
Current weather conditions are shown below. The station is located in the headwaters of Limestone Run, a tributary to Penns Creek near the town of Mifflinburg, which is in Union County, Pennsylvania (USA).
Monitoring

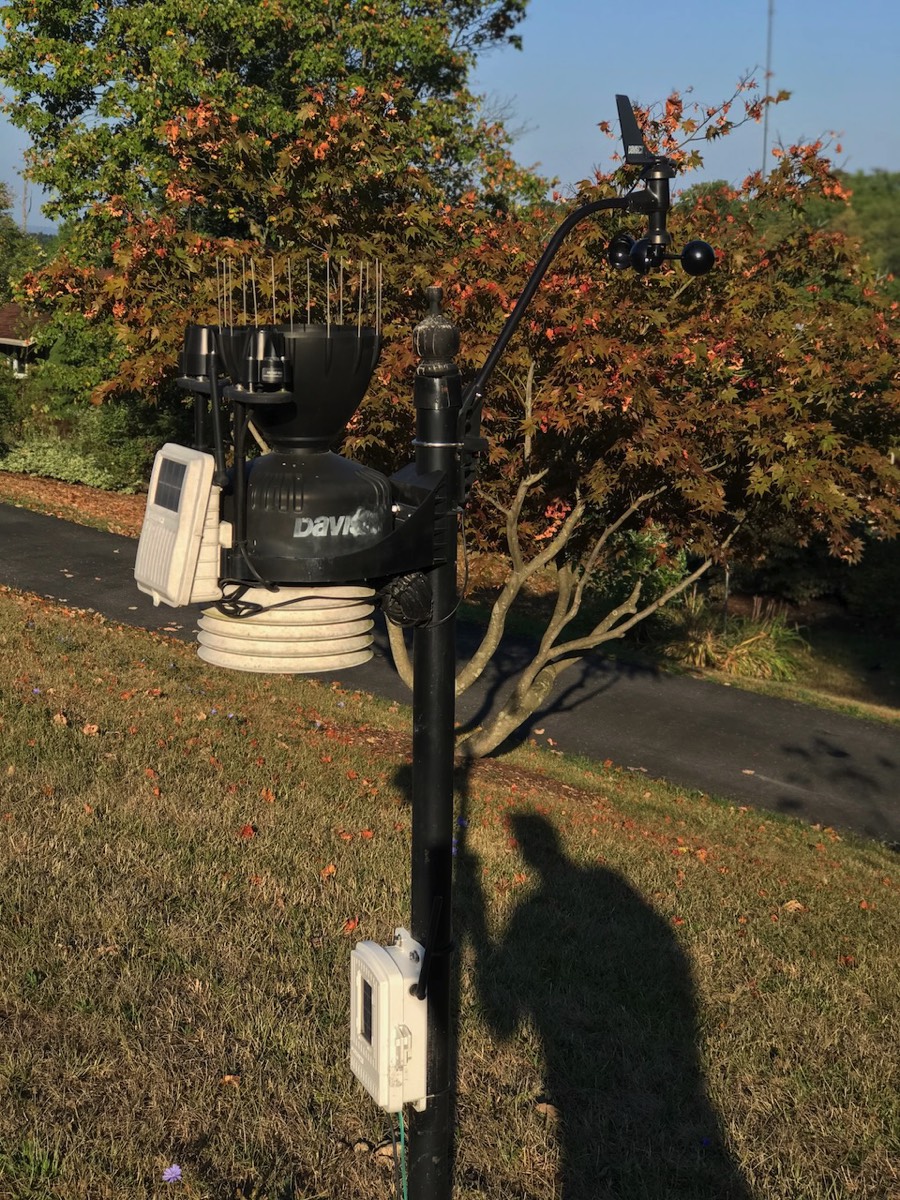

Weather is monitored continuously using a Davis Instrument's Vantage Pro™ weather station located in our front yard. Instruments include a tipping bucket rain gage, barometer, anemometer (wind speed and direction), pyrometer (solar radiation), air temperature, relative humidity, and soil temperature and soil moisture lysimeter.
Stacks Image 89
Stacks Image 52
Data Collection
The Vantage Pro™ weather station has a solar panel and wireless transmitter which sends the data to a small table-top console in the house. The console is equipped with a Davis Weatherlink™ IP dongle connected to the internet router via a Cat4 cable.

Davis Instrument's WeatherLink™ software is also running on a Windows server, which then stores the data locally on a hard drive as well as uploads to Davis' Instruments WeatherLink™ cloud servers. One of my irritations with Davis Instruments is that you have to have a paid WeatherLink™ account in order to access the data online and view it one their dashboard (which is really great). That's frustrating.
Stacks Image 33

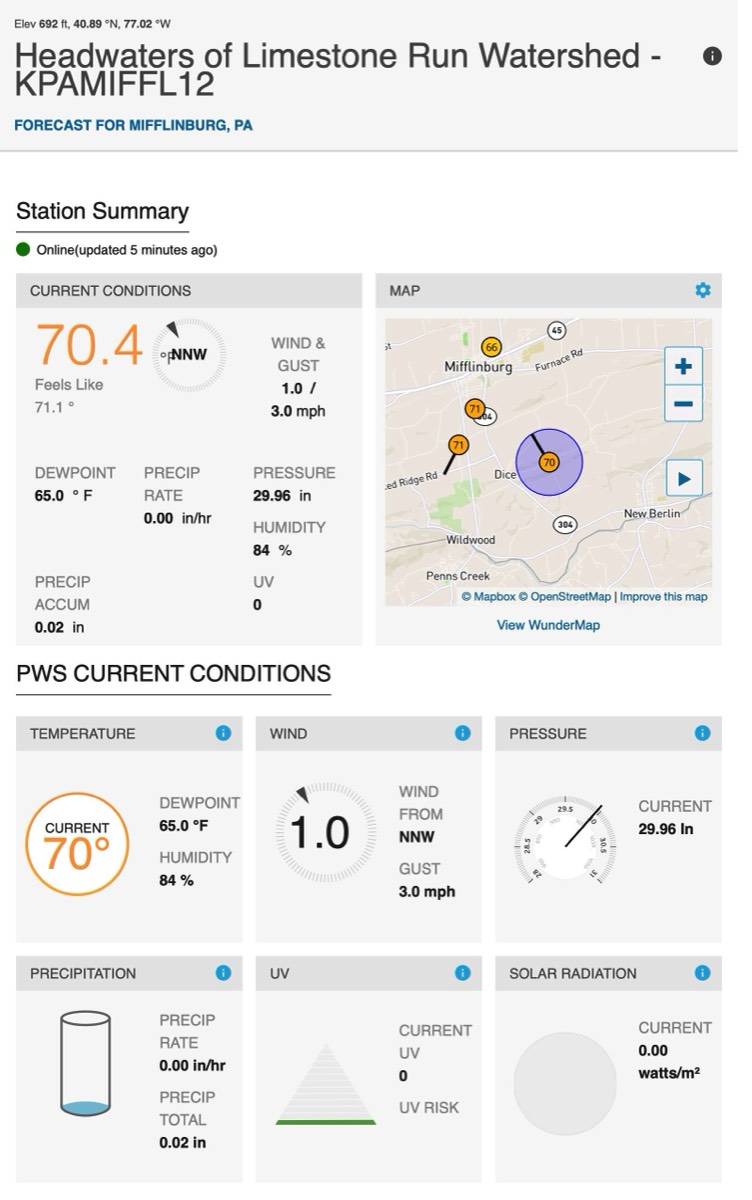

Weather Underground
However, you can view the station data and weather forecast at Weather Underground KPAMIFFL12 "Headwaters of Limestone Run" . Click the button below to view this website.
